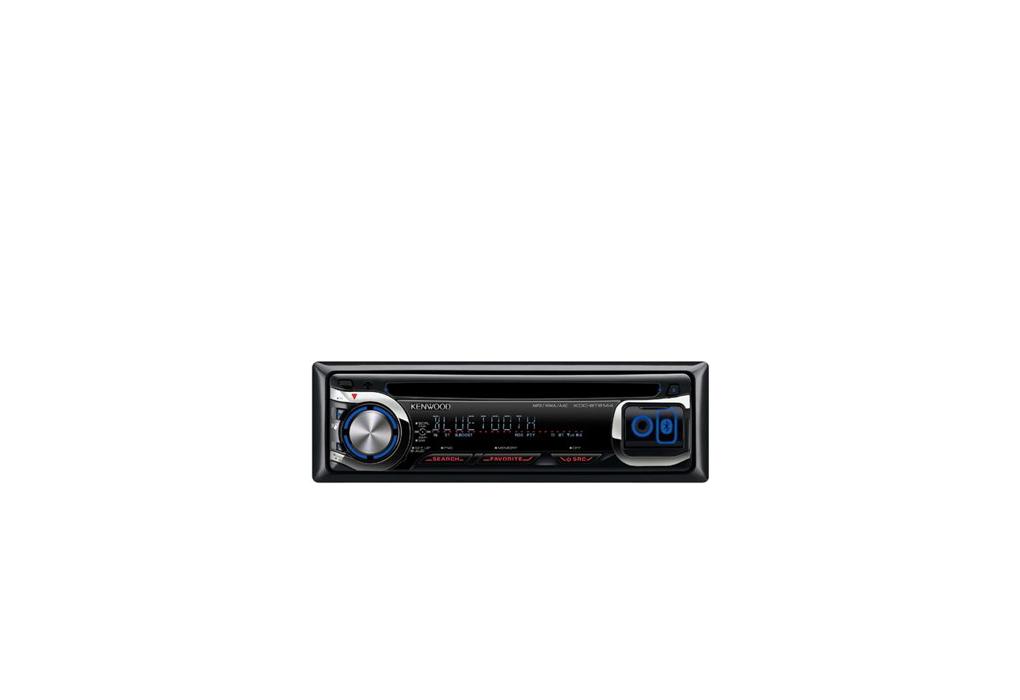

Kenwwod KDC-BT6144Y





MP3/WMA/AAC CD-Receiver with Bluetooth built-in

  • Hands Free Profile (HPF)
  • Illumination Effect
  • IR remote controller included
  • System Q_EX (Preset & Manual Sound Control)
  • System E”s+ (Built-in HPF & LPF)
  • Bluetooth unit built-in
  • Radio Text Plus
  • Program Type Function (PTY)

Key Features

Bluetooth with handsfree profile & SMS, built-in
Illuminated front AUX input slide protection cover
MP3, WMA & AAC files playback with ID-3 tag display
1 preout rear/subwoofer switchable, 2,0V
14 segment, 13 digit FL display
RDS tuner with radio-text-Plus support
High-performance, clean-reception K3I tuner
IR remote control unit included

General Features

DIN Size 1 DIN
Detachable Faceplate Yes
Protection Case For Faceplate Yes, Soft Case
Faceplate Mechanism Full Detachable Faceplate
Security Code Function Yes
Key Illumination Red
Rotary Encoder & Control Knob Yes
Operation mode Rotary + push
Music Search function Yes
Favorite Memory function Yes
Back-up Memory
Attenuator with Smooth Volume Return Yes, only with remote control
Touch Sensor Tone Yes
IR remote controller included RC-547
Digital Clock (24H) Yes
All-off Select (20/40/60 minutes) Yes
Built-in Connector Molex 16 pin
ISO connector Yes
Bluetooth unit built-in Yes

Display Features

Display Type Fluorescent (FL) Tube Display
Display Layout 14 segments x 13 Characters
Spectrum Analyzer
Dimmer Control 2 steps – automatic
Demo Mode Yes
Special Character Display Russian Characters

Cosmetics features

Front/edge Dark Silver
Dress plate Dark Silver
Volume & operation knob or wheel Chrome Finish
Preset key finish Black Injection
Escutcheon finish Black Injection
Triangle Illumination Red
Volume & operation knob illumination Blue
Key illumination Red
Illumination Effect Yes, Bar motion effect

CD Features

CD-R/RW Compatible Yes
MP3 Playback with ID3 Tag Display Yes
WMA (Windows Media Audio) Playback Yes
AAC (Advanced Audio Coding) Playback Yes
Multi-session Disc Playback Yes
CD Text Support Yes
Supreme Yes
D.A.C. processing 24 bit
Random Function
Repeat Function
Scan Function

Audio Features

Maximum Output Power 50W x 4
Auxiliary input Yes, Illuminated input and slide protection cover
Auxiliary Type Mini-jack
Pre-out 1 RCA
Pre-out Output Level 2V
Preout Rear / Subwoofer Switchable Yes
Subwoofer Reference Level Adj. Yes
Dual-Zone Source & Volume Control Yes
Dual-Zone (FRONT / REAR Switchable) Yes
Balance/Fader Control Yes
Bass Boost Circuit
Att.(-20dB) with smooth Volume Return Yes
System Q_EX (Preset & Manual Sound Control) Yes
System E”s+ (Built-in HPF & LPF) Yes

Bluetooth General Features

Hands Free Profile (HPF)
Phonebook Access Profile (PBAP) Yes
Short Message Service (SMS) Yes
Phone numbers hold: up to 1000 per registed cell-phone.
Voice Recognition Yes
Phone device status display Yes
Audio device status display Yes
Signal strength display Yes
Remaining battery display Yes
Bluetooth phones to register 5
High-quality noise canceling microphone Built-in
Bluetooth firmware upgradeable Yes
* depends on phone model/make


PS Amplifier Control System (5L-Bus) No
Power Control (P.CON) wire Yes
2-way (Tel/Navi) mute wire Yes
Dimmer control wire Yes

Tuner Specifications

FM Frequency Range 87.5MHz ~ 108MHz
FM Frequency Step 50kHz
FM Usable Sensitivity 0.7μV/75ohm (S/N 26dBf)
FM Quieting Sensitivity 1.6μV/75ohm (S/N 46dBf)
FM Frequency Response 30Hz ~ 15kHz (± 3dB)
FM Selectivity(DIN) over 80dB (±400kHz)
FM Stereo Separation (1kHz) 35dB
MW Frequency Range 531kHz ~ 1611kHz (9kHz step)
MW Frequency step 9kHz
MW Usable Sensitivity 25μV
LW Frequency Range 153kHz ~ 281kHz (9kHz step)
LW Usable Sensitivity 45μV

CD Specifications

Laser Diode GaAIAs
Digital Filter(D/A) 8 Times Over Sampling
Digital/Analogue Converter 24 Bit
Spindle Speed 500 ~ 200rpm (CLV: 1 times)
Wow & Flutter Below Measurable Limit
Frequency Response 10Hz ~ 20kHz (±1dB)
Total Harmonic Distortion 0.01% (1kHz)
Signal to Noise Ratio 105dB (1kHz)
Dynamic Range 93dB
MP3 Decoder Compliant with MPEG-1/2 Audio Layer-3
WMA Decoder Compliant with Windows Media Audio
AAC Decoder AAC-LC”.m4a” Files
Maximum number of files 512
Maximum number of folders 50
Max. nr. files per folder 255
Max. nr. of characters for file name 64
Max. nr. of characters for folder name 64
Max. nr. of characters for MP3-tags 30
Max. nr. of characters for WMA-tags 30
Max. nr. of characters for AAC-tags 60

Audio Specifications

Maximum Power 50W x 4
Output Power (DIN45324,+B=14.4v) 30W x 4
Preout Level 2000mV / 10kOhm,
Preout Impedance ≤ 600Ohm
Speaker Impedance 4Ohm ~ 8Ohm
AUX Frequency Response 20Hz ~ 20kHz (±1dB)
AUX Maximum Input Voltage 1200mV
AUX Input Impedance 10kOhm
Bass Tone Control 100Hz ±8dB
Middle Tone Control 1kHz ±8dB
Treble Tone Control 10kHz ±8dB

General Specifications

Operating voltage 14.4V (11 ~ 16V Allowable)
Maximum Current Consumption 10A
Dimensions (WxHxD) 182 x 53 x 155mm
Weight 1300 gr.
Instruction Manuals ENG/RUS
