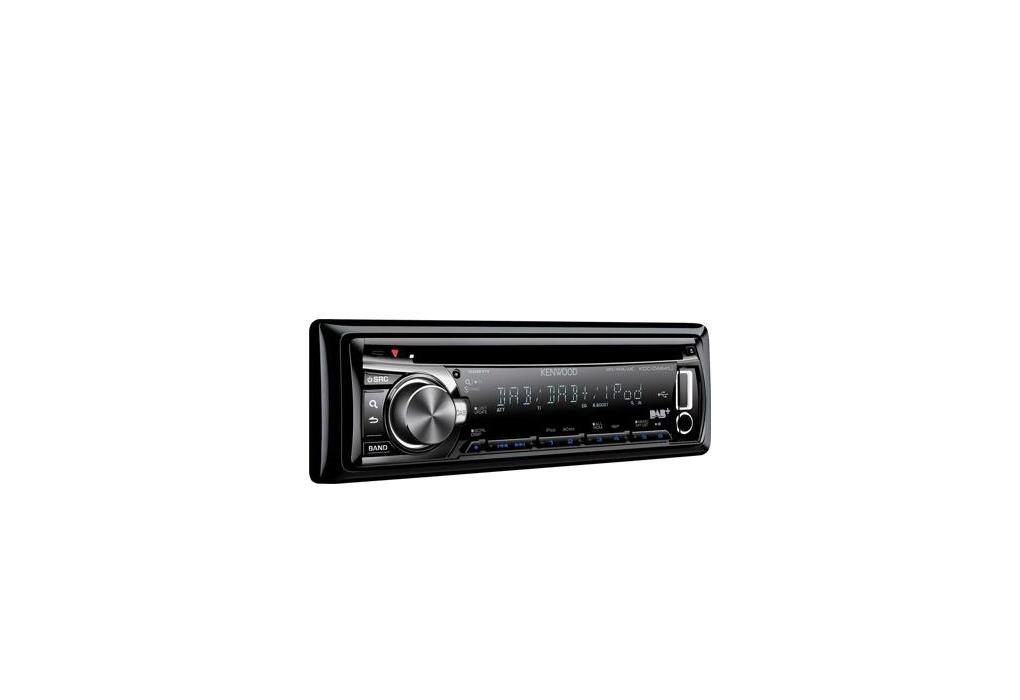

Kenwood KDC-DAB41U




  • DAB+ tuner built-in
  • Made for iPod & iPhone *
  • Optional IR remote controller
  • System Q_EX (Preset & Manual Sound Control)
  • Mixed preset memory (FM & AM)
  • Program Type Function (PTY)
  • OEM Wired Remote Control ready

Key Features

MP3, WMA, AAC playback
DAB+ tuner built-in
Illuminated front AUX & USB terminal with slide protection cover
iPod/iPhone direct control terminals
Orignial steeringwheel remote controle interface terminal
RDS with radio text
Compatible with Kenwood Music Editor lite
DAB antenna included

General Features

DIN Size 1 DIN
Detachable Faceplate Yes
Protection Case For Faceplate Yes, soft case
Faceplate Mechanism Full Detachable Faceplate
Key Illumination Blue
Rotary Encoder & Control Knob Yes
Music Search function Yes
Accent key (DAB key)
Optional IR remote controller Yes
Digital Clock (24H) Yes
All-off Select (20/40/60 minutes) Yes
Built-in Connector Molex 16 pin
ISO connector Yes
USB interface x 1 Yes, Front

Display Features

Display Type Fluorescent (FL) Tube Display
Display Layout 14 segments x 13 Characters
Display Illumination Flouricent (FL)
Dimmer Control 2 steps – Manual
Demo Mode Yes
Special Character Display Russian Characters

Cosmetics features

Front/edge Black Injection
Dress plate Chrome plated
Volume & operation knob or wheel Chrome Plated
Preset key finish Piano Black
Escutcheon finish Black Injection
Triangle Illumination Red
Volume & operation knob illumination White
Key illumination Blue

CE DAB tuner features

DAB+ tuner built-in Yes
DAB+ support Yes
Intelligent seek Yes
Ensemble seek Yes
Service preset 3 ch * 6 bank presets,
Auto service memory (AME) Yes, (only first service in each ensemble)
Service list by alphabet order Yes
Audio interrupt standby by PTY Yes
Audio interrupt standby by announcement Yes
DAB-RDS integrated TI Yes
DAB-AF (Alternative frequency) Yes
DAB priority Yes
Antenna power supply on/off switch Yes
DAB antenna included Yes

CD Features

CD-R/RW Compatible Yes
CD Text Support Yes
CD Text with special Character Support Yes, Russian
Supreme Yes
D.A.C. processing 24 bit
Compatible with Kenwood Music Editor Lite Yes

USB Features

USB terminal Yes, Front
USB Type USB1.1 / USB 2.0
Kenwood Music Editor Lite Compatible Yes, (download from site)
MP3, WMA & AAC playback Yes
Repeat/Scan/Random search Yes

iPod Features

Made for iPod & iPhone * Yes
USB Direct Control with optional cable KCA-iP101
Music playback Yes
Alphabet search Yes
Skip search Yes
Related search Yes
My playlist Yes
Control by hand Yes
Reverse browsing Yes
Works with iPod Classic * 80G & 120G
Works with iPod Video * 5th/6th generation
Works with iPod Touch * 1st/2nd generation
Works with iPod Nano * 1st/2nd/3rd/4th/5th Gen
Works with iPhone *
Battery charge + power control Yes
1A current capability Yes
* Always update to latest Apple firmware

External Media Control Features

Dual Changer Control (CH1, CH2 & AUX) Yes
CD Text Ready with Compatible KENWOOD Units Yes
Disc & Track Repeat Yes
Disc & Track Scan Yes
Disc & Track Random Play Yes
Bluetooth Handsfree Yes
Bluetooth Audio Streaming Yes

Audio Features

Maximum Output Power 50W x 4
Auxiliary input Yes, front
Auxiliary Type Mini-jack
Pre-out 1 RCA
Pre-out Output Level 2V
Preout Rear / Subwoofer Switchable Yes
Subwoofer Reference Level Adj. Yes
Source Tone Control & Memory Bass / Mid / Treble
Balance/Fader Control Yes
Bass Boost Circuit
System Q_EX (Preset & Manual Sound Control) Yes
Low-pass Filter Yes


External Media Control Bus (5L) Yes
iPod Digital Connection (1 Wire) Yes
USB interface
OEM Wired Remote Control ready Yes
2-way (Tel/Navi) mute wire Yes

Tuner Specifications

FM Frequency range (50kHz step) 87.5MHz ~ 108MHz
FM Usable Sensitivity 1μV/75ohm (S/N 26dBf)
FM Quieting Sensitivity 2.5μV/75ohm (S/N 46dBf)
FM Signal to noise ratio (Mono) 63dB
FM Stereo Separation (1kHz) 40dB
MW Frequency Range 531kHz ~ 1611kHz (9kHz step)
MW Frequency step 9kHz
MW Usable Sensitivity 36μV
LW Frequency Range 153kHz ~ 279kHz (9kHz step)
LW Usable Sensitivity 57μV

DAB Tuner specifications

L Band – Frequency range 1452.96MHz – 1490.624MHz
Band III – Frequency range 174.928 MHz – 239.2MHz
Sensitivity – 100dBm
Signal to noise ratio 80dB

CD Specifications

Laser Diode GaAlAs
Digital Filter(D/A) 8 Times Over Sampling
Digital/Analogue Converter 24 Bit
Wow & Flutter below measurable limit
Frequency Response 20Hz ~ 20kHz (±1dB)
Total Harmonic Distortion 0.01% (1kHz)
Signal to Noise Ratio 105dB (1kHz)
Dynamic Range 90dB
Channel Separation 85dB
MP3 Decoder Compliant with MPEG-1/2 Audio Layer-3
WMA Decoder Compliant with Windows Media Audio
AAC Decoder AAC-LC “.m4a” files

USB Specifications

USB Version compatibility 1.1 / 2.0
File System FAT 16/32
Maximum Supply current 500mA
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
AAC Decode AAC-LC “m4a” Files

Audio Specifications

Maximum Power 50W x 4
Output Power (DIN45324,+B=14.4v) 30W x 4
Preout Level 2000mV / 10kOhm,
Preout Impedance ≤ 600Ohm
Speaker Impedance 4Ohm ~ 8Ohm
AUX Frequency Response 20Hz ~ 20kHz (±1dB)
AUX Maximum Input Voltage 1200mV
AUX Input Impedance 10kOhm
Bass Tone Control 100Hz ±8dB
Middle Tone Control 1kHz ±8dB
Treble Tone Control 10kHz ±8dB

General Specifications

Operating voltage 14.4V (11 ~ 16V Allowable)
Maximum Current Consumption 10A
Dimensions (WxHxD) 182 x 53 x 158mm
Weight 1300 gr.
Instruction Manuals ENG/FRE/GER/DUT/ITA/SPA/POR
